Plan a safety relay upgrade around the required safety functions, device inputs, safe outputs, reset and restart behaviour, diagnostics, wiring changes and validation evidence.
Speak directly with Oxford Machine Guarding about safety-relay replacement and redesign.
Identify the existing safety functions, devices, wiring and outputs controlled by the relay. Review the reason for replacement and any changes to the machine or operating method. Check the complete function, including monitoring, reset and restart, and document the design changes and validation of the installed circuit.
A failed or obsolete relay can trigger a wider review of the safety circuit. Establish whether the work is a verified substitution, a functional change or a redesign, and include the connected devices and actual machine response in that decision.
Record the existing device and reason for replacement: failure, obsolescence, unavailable spares or a changed machine duty. Preserve existing drawings and settings as the baseline. If the required safety function has changed, that must be reviewed explicitly rather than hidden within a part substitution.

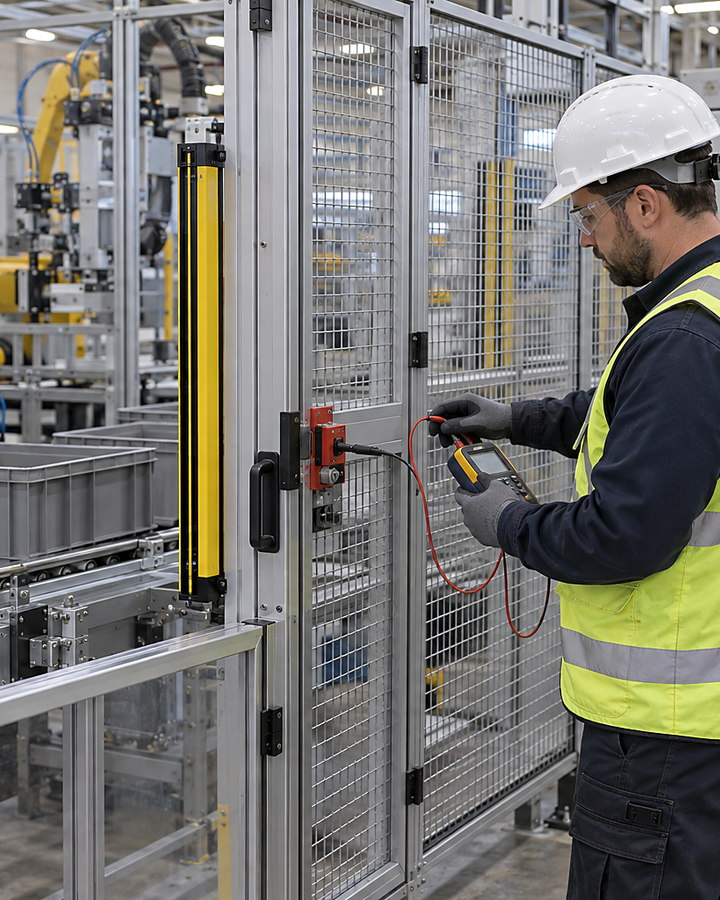

List connected emergency stops, guard devices and other inputs, including channels, zones and modes. Reconcile drawings with the installed circuit under competent control. Terminal numbering or connector shape is not sufficient evidence that a replacement monitors the same conditions.
Identify the contactors, drives, valves and relevant feedback involved in the safety response. Include the required machine state and the existing stopping behaviour. The replacement review should cover the whole function from initiating device to final controlled equipment.
Describe what happens after a demand, a supply interruption and the restoration of an input. Record the intended operator sequence and what must be checked before restart. These behaviours belong in the design and validation requirements, not only in an assumption about the old relay.
A limited set of clearly defined functions may suit a relay arrangement; interacting zones or modes may warrant a different architecture. Compare supportability and diagnostic needs against the assessed functions. More programmable capability is not, by itself, evidence of a safer machine.
Keep device identification, revised drawings, settings and the approved validation results together. Record unresolved findings and the person responsible for release. Future maintenance should be able to identify what changed and why without reconstructing the project from labels inside the cabinet.
Use the selection guide to organise the comparison, then send the application details for review.
The right choice changes with required safety functions and safe states, device inputs, zones and operating modes, your line layout and required results.
Carry the application decisions into a documented review and an agreed test or inspection plan.
Record the machine response, device arrangement and reasons for the upgrade.
Define substitution or redesign, interfaces and required competent assessment.
Reconcile devices, wiring, settings and the intended reset sequence.
Retain the agreed functional and fault-test evidence with updated circuit records.
Your final solution for safety-relay replacement and redesign must reflect the law, current standards and site-specific risks that apply to your installation.
Replace an obsolete or failed safety relay without assuming pin compatibility, and decide whether the work is a verified substitution or a wider safety-function redesign.
Separate verified like-for-like replacement, functionally equivalent substitution and safety-function redesign.
Capture the existing device, wiring, input channels, reset logic, monitored outputs and actual machine response.
matching terminals or contact counts does not establish equivalent fault behaviour.
The quotation brief should record existing safety function and required safe state and input device type, channels, monitoring and zone. Final suitability remains specific to the samples, line conditions and acceptance tests agreed for your project.
A replacement relay needs to be assessed within the complete safety function. A similar terminal layout or supply voltage does not establish compatibility with the existing input devices, outputs and reset arrangement.
Record the actual relay identification and revision, supply, connected devices and final switching elements. Compare this with the drawings before design work begins. Where undocumented wiring differs from the drawing, resolve the discrepancy rather than making a new drawing that assumes the old arrangement was correct.
Keep the event sequence: input condition, relay indication, output response and what the operator did next. A stopped machine with a relay indication does not by itself prove the relay has failed. Investigation must use the approved safe procedure; do not bridge or defeat a safety input to maintain production.
Identify what should happen after an input returns to normal, supply is interrupted or a monitored output does not respond as expected. The competent design should establish the correct device and configuration for those requirements. Avoid treating a change in reset mode as a minor convenience setting.
Keep the approved replacement details, circuit revision, validation evidence and any controlled configuration together. Label changed devices consistently with the drawings. This makes a later fault investigation possible without relying on someone remembering which terminals were altered during the upgrade.
